AC Variable Frequency Power Supply

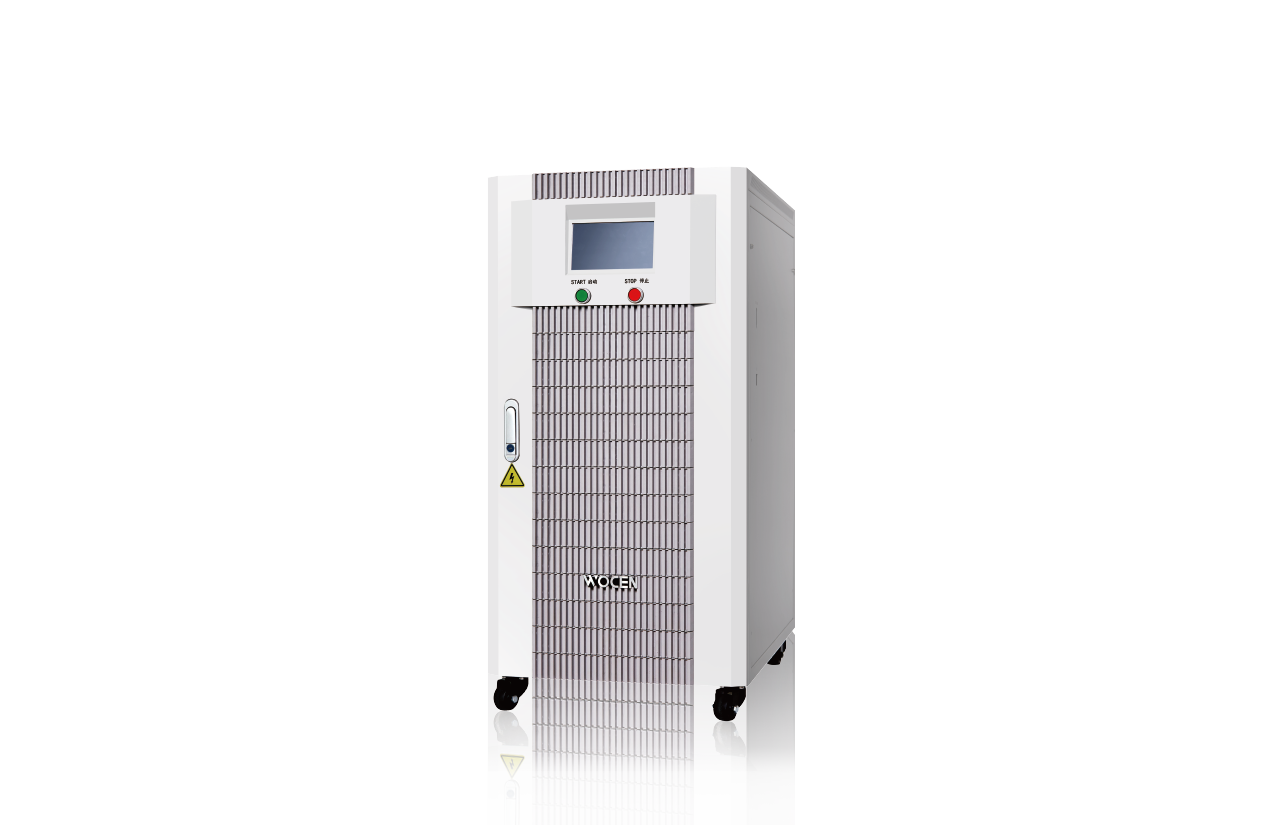

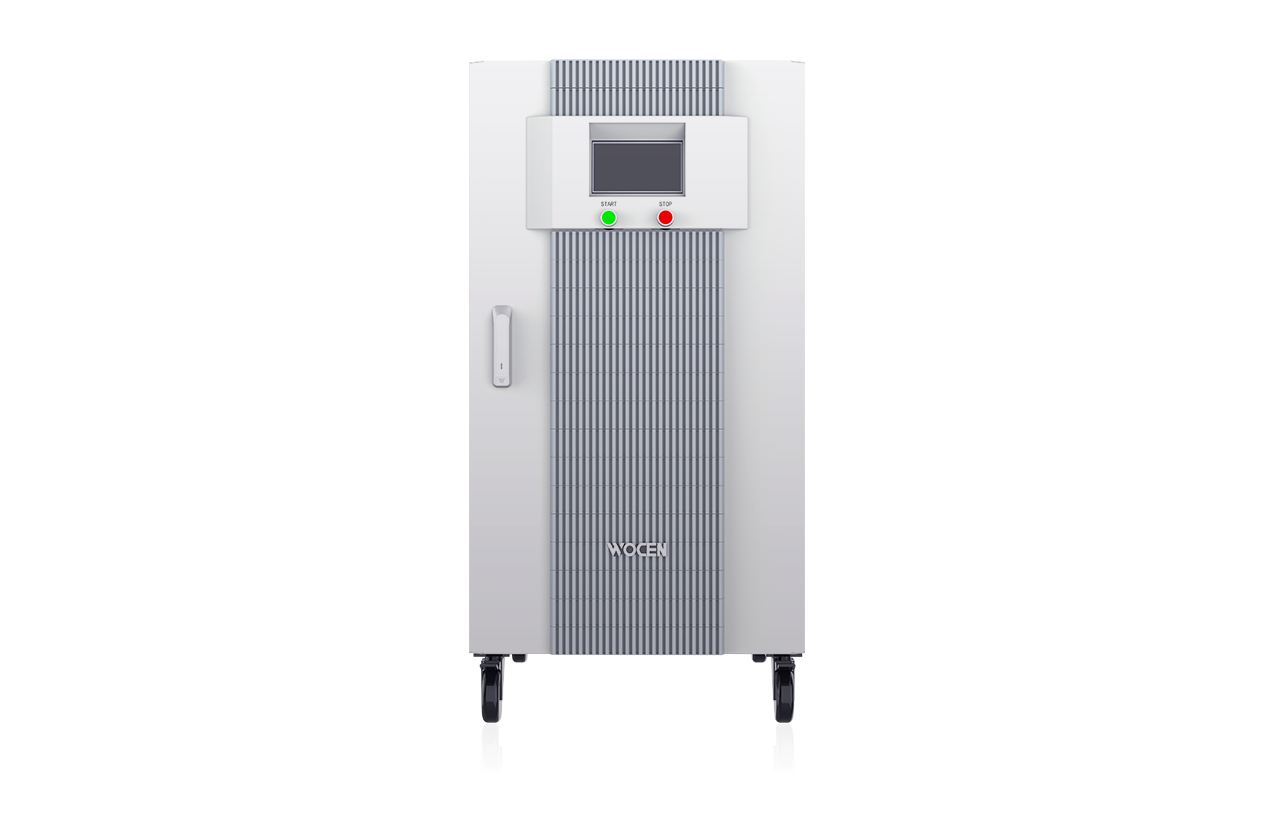

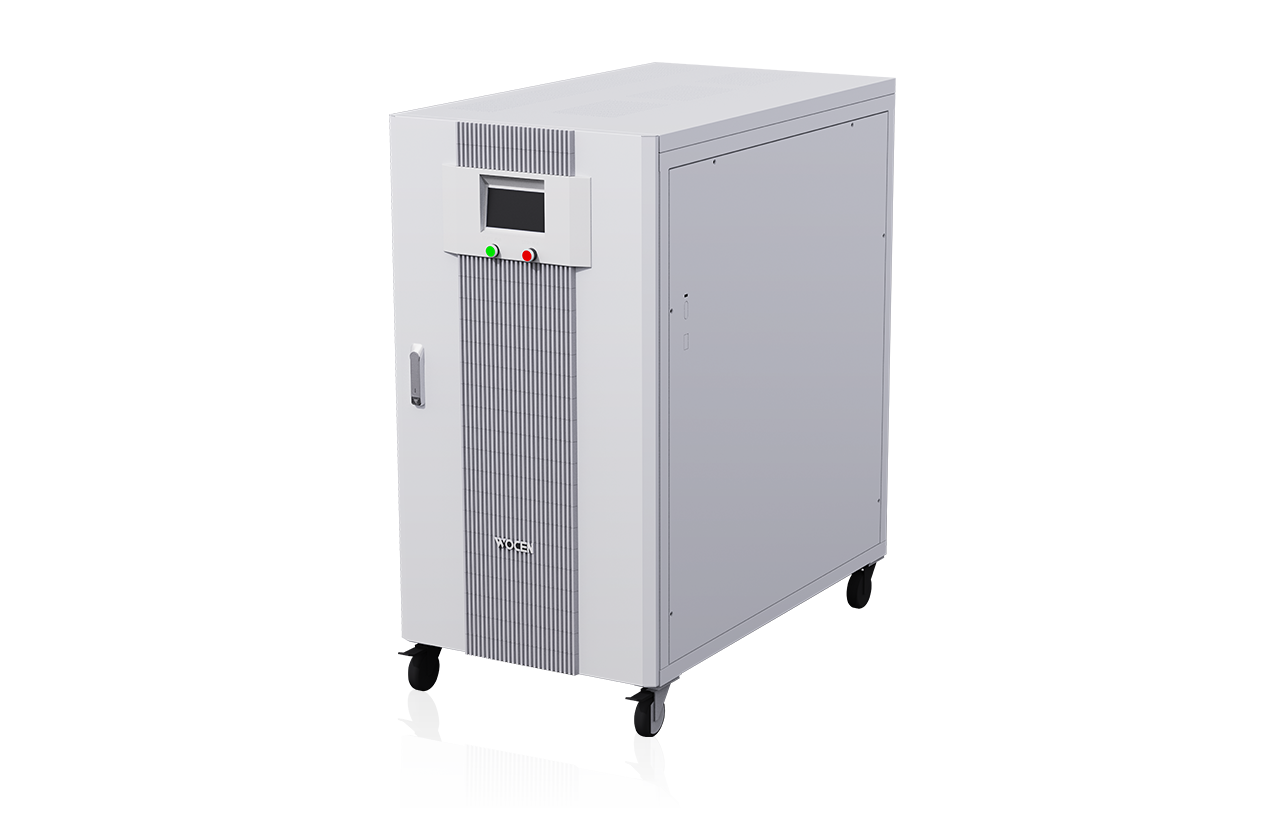

BP7 Series

The BP7 series AC variable- frequency power supply is a highperformance power supply that can simulate the voltage/frequency of electrical grids around the world. It is suitable for R&D testing and production testing in industries such as home appliances, motors, power tools, the military industry, and aerospace.

Return to List
Application Area
  • Home Appliances
  • Electric Motors
  • Compressor
  • LED
  • Import and ExportEquipment
  • Avionics
  • Scientific ResearchInstitutions
  • Motors

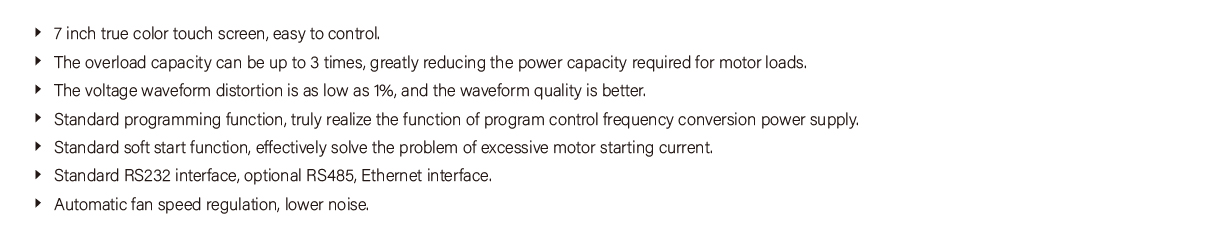

Product Features
  • 7- inch true color touch screen, easy to operate.
  • Overload capacity can reach 3 times, significantly reducing the power capacity required for motor loads.
  • Voltage waveform distortion is as low as 1%, and the waveform quality is better.
  • Standard programming function, genuinely realizing the programmable variable frequency power supply function.
  • Standard soft start function, effectively solving the problem of excessive motor starting current.
  • Standard RS232 interface, optional RS485, Ethernet interface.
  • Fan automatic speed regulation, lower noise.

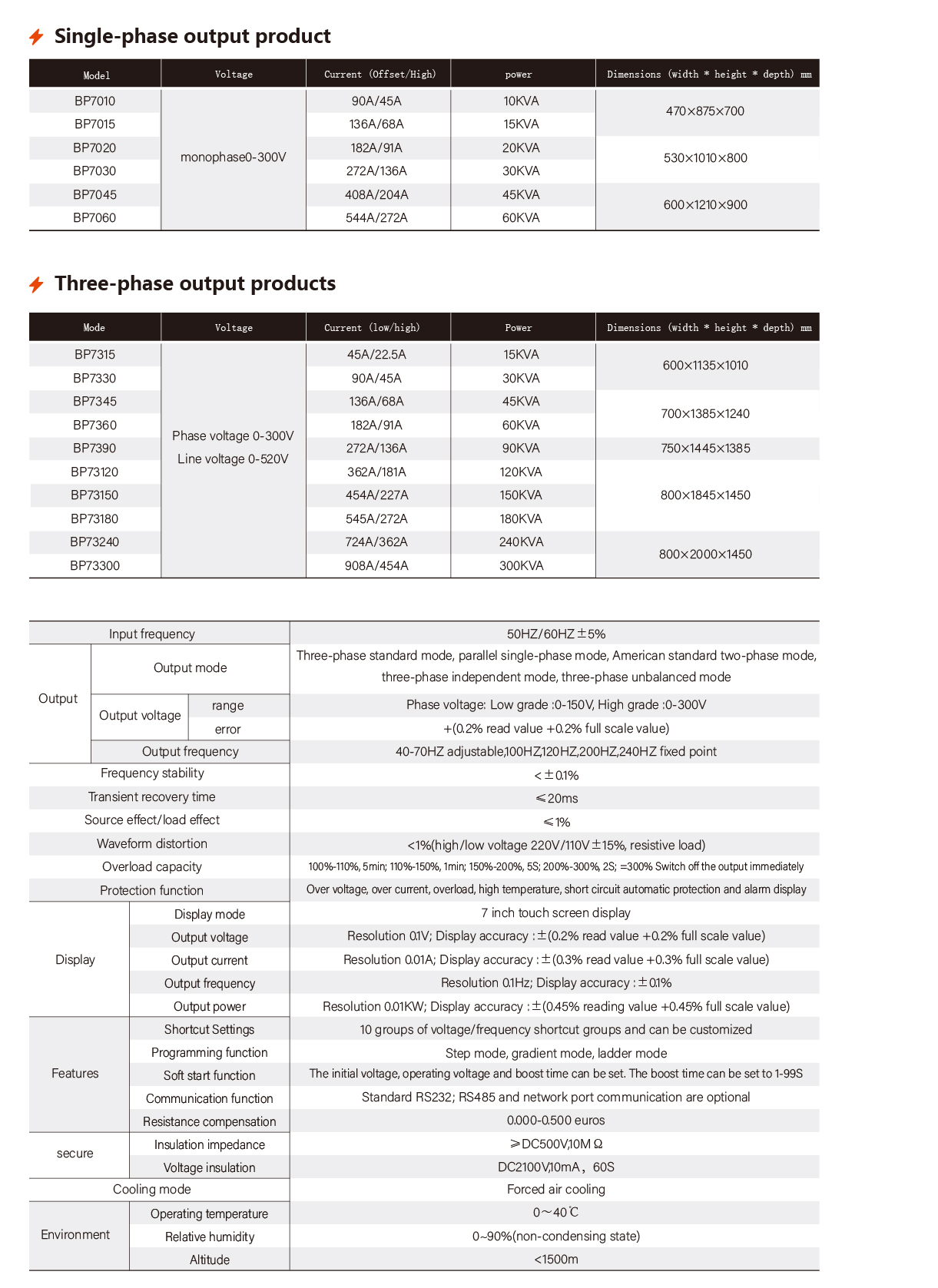

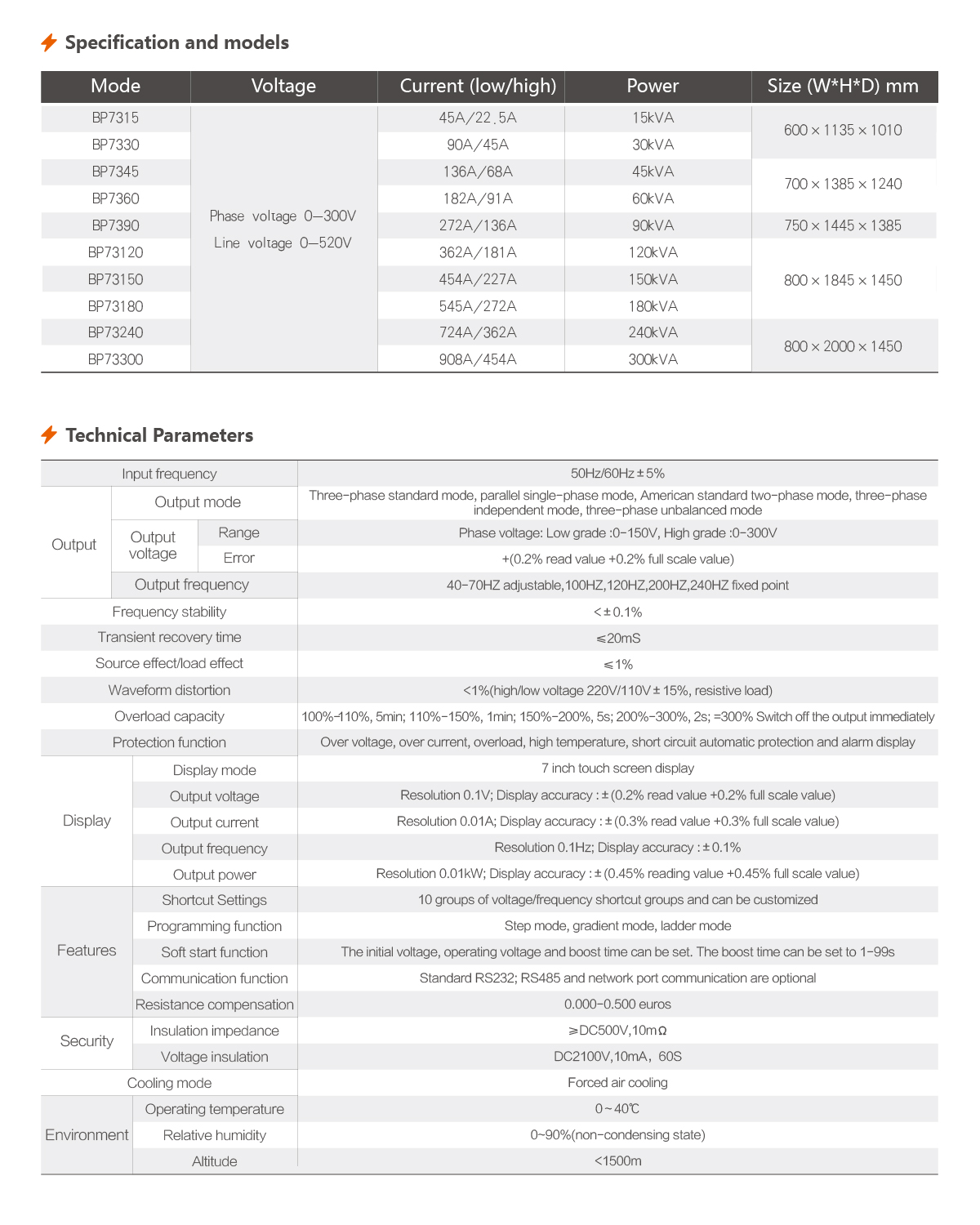

Technical parameter table
