Shore Power Supply
AP Series
AP Series Shore Power Pupply is a high-power inverter power supply equipment specially designed and manufactured by our company according to the needs of port and ship customers, especially for the harsh use environment such as high temperature, high humidity, high corrosion and large load impact in port shipbuilding. It is mainly used in port and ship manufacturing. Input 6~10kV/50Hz or 380V 150Hz, output 440V 160Hz. After the ship docked, the ship's generator was switched to shore-based power supply. The current technical capability can achieve a maximum power of 5000kVA.
Return to List
Application Area
  • Debugging of offshore oil platforms
  • Largetonnage (over 40 tons) bridge cranes, gantry cranes, and othertypes of lifting machinery
  • Scientific ResearchInstitutions
  • Shoreside container cranes, gantry cranes, ship loaders, ship unloaders,tippers, and other types of port machinery

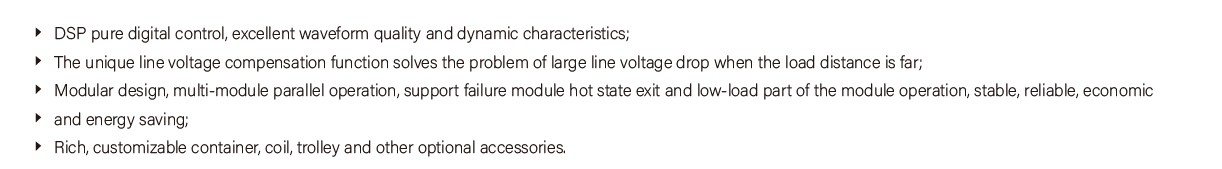

Product Features
  • DSP pure digital control, excellent waveform quality, and dynamic characteristics.
  • Unique line voltage compensation function solves the problem of large line voltage drop when the load distance is far.
  • Modular design, multi- module parallel operation, support for fault module hot exit and low- load partial module operation, stable, reliable, economical, and energy- saving.
  • Rich, customizable containers, windlasses, trolleys, and other optional accessories.

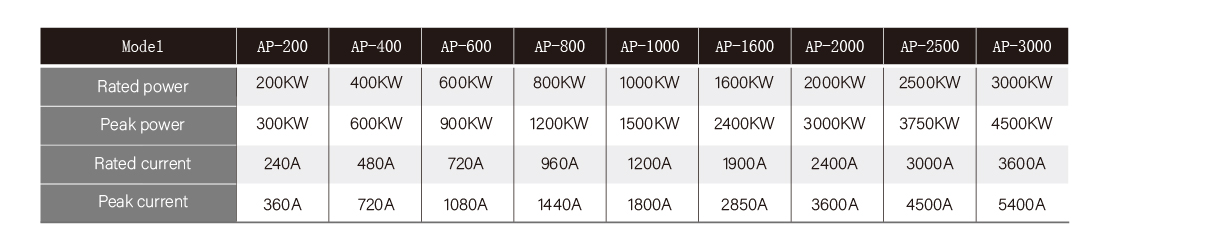

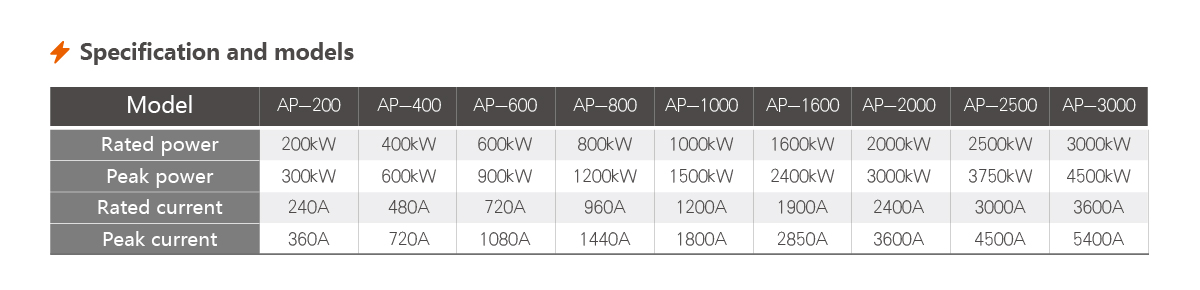

Technical parameter table
