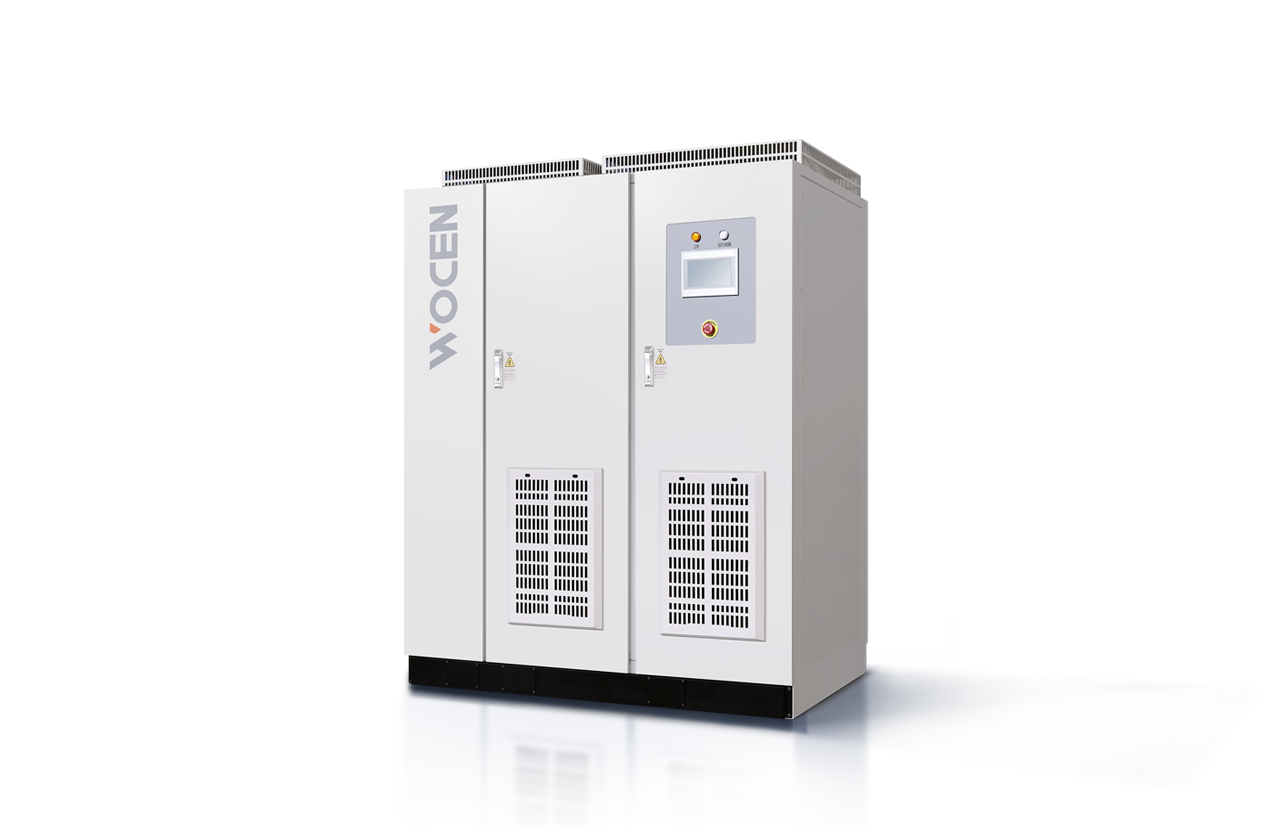

EVWS Series Battery Simulator
The EVWS series battery simulator has the characteristics of battery simulation, which can simulate battery discharge characteristics and battery charging characteristics. It can be used in different test situations instead of electric vehicle batteries to save space and cost for users. It is continuously adjustable within the full range of voltage 24~800V (1000V), current 0~1000A (peak 1300A)/power 0~500KW (peak 650KW). battery simulator can work in different operating modes such as CV/CC/CP, which can meet the precise testing requirements of different loads. It has a complete self-diagnosis and protection functions, which can prevent instrument damage or personal injury caused by wrong operation or environmental factors.
