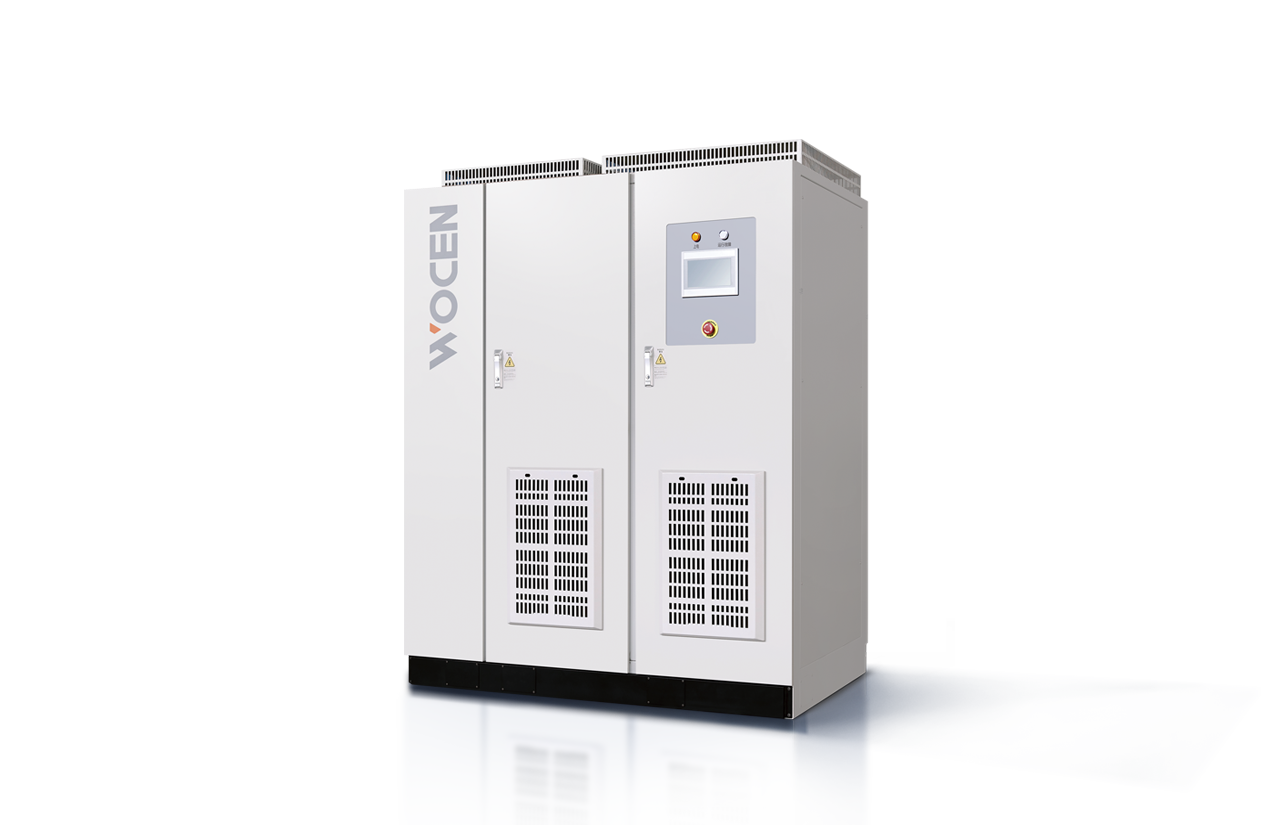

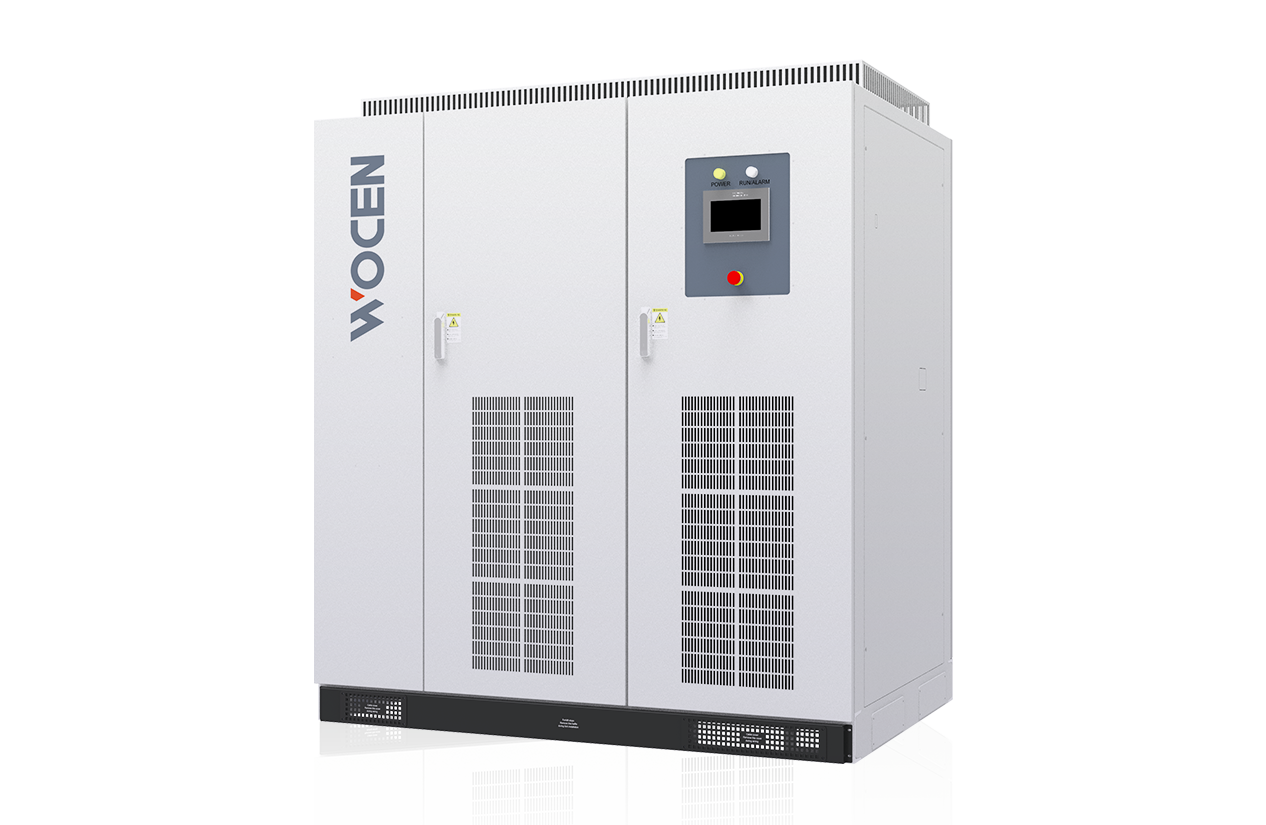

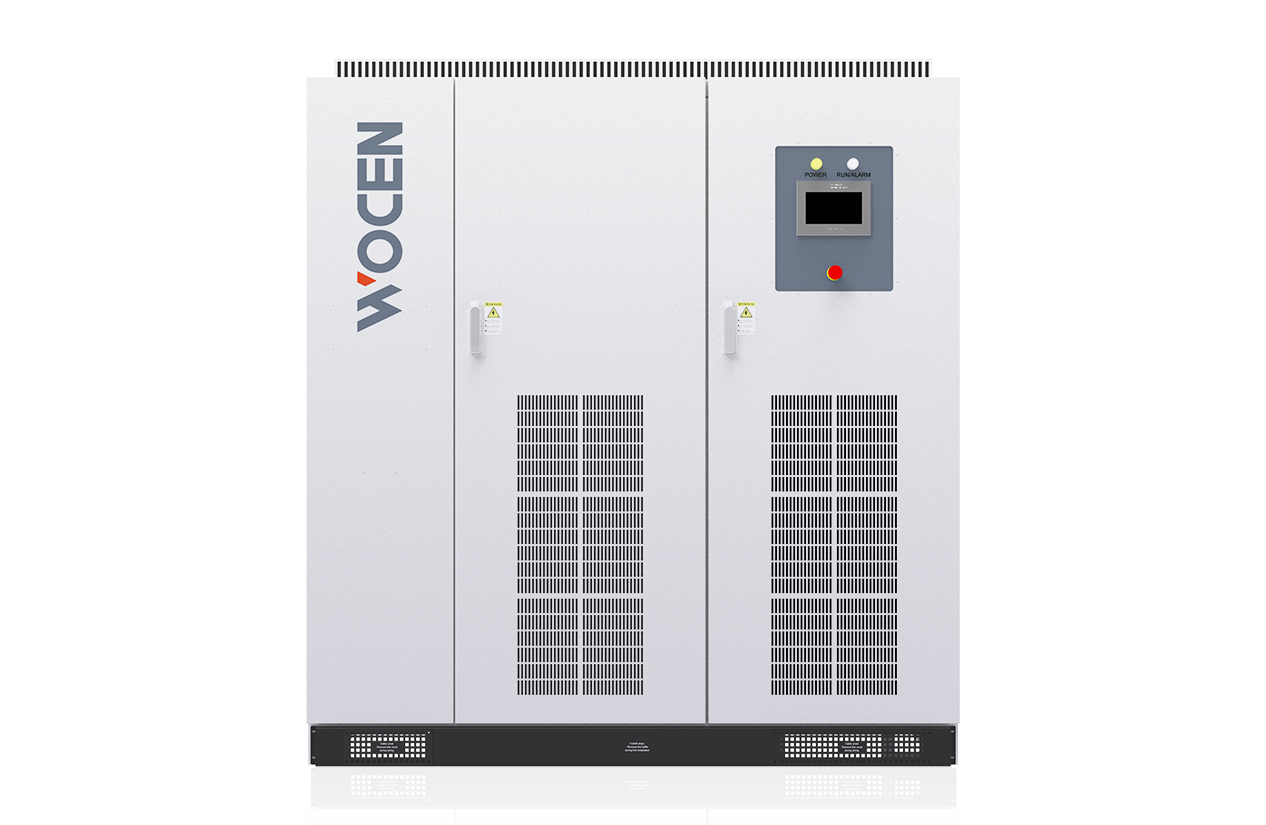

EVWB Series Bi-directional DC Test Power Supply
The EVWB series bi-directional dc test power supply is characterized by bi-directional flow, which can not only provide power for load, but also feedback power to the power grid without pollution, saving space and cost for users. It is continuously adjustable within the full range of voltage 24~800V (1000V), current 0~1000A (peak 1300A)/power 0~500KW (peak 650KW).The bi-directional dc test power supply can work in different operating modes such as CV/CC/CP, which can meet the precise testing requirements of different loads.
Return to List
Application Area
  • Electric vehicle motor testing
  • Electric vehicle powertrain testing
  • Electric vehicle whole vehicle testing
  • DCDC testing for electric vehicles
  • Hybrid vehicle generator testing
  • Electric vehicle electronic control testing
Product Features

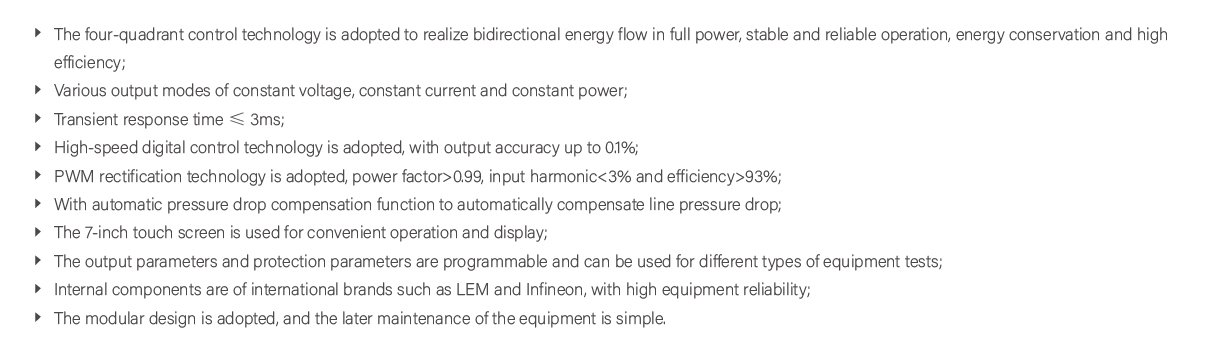

Two-way DC test power supply product features picture

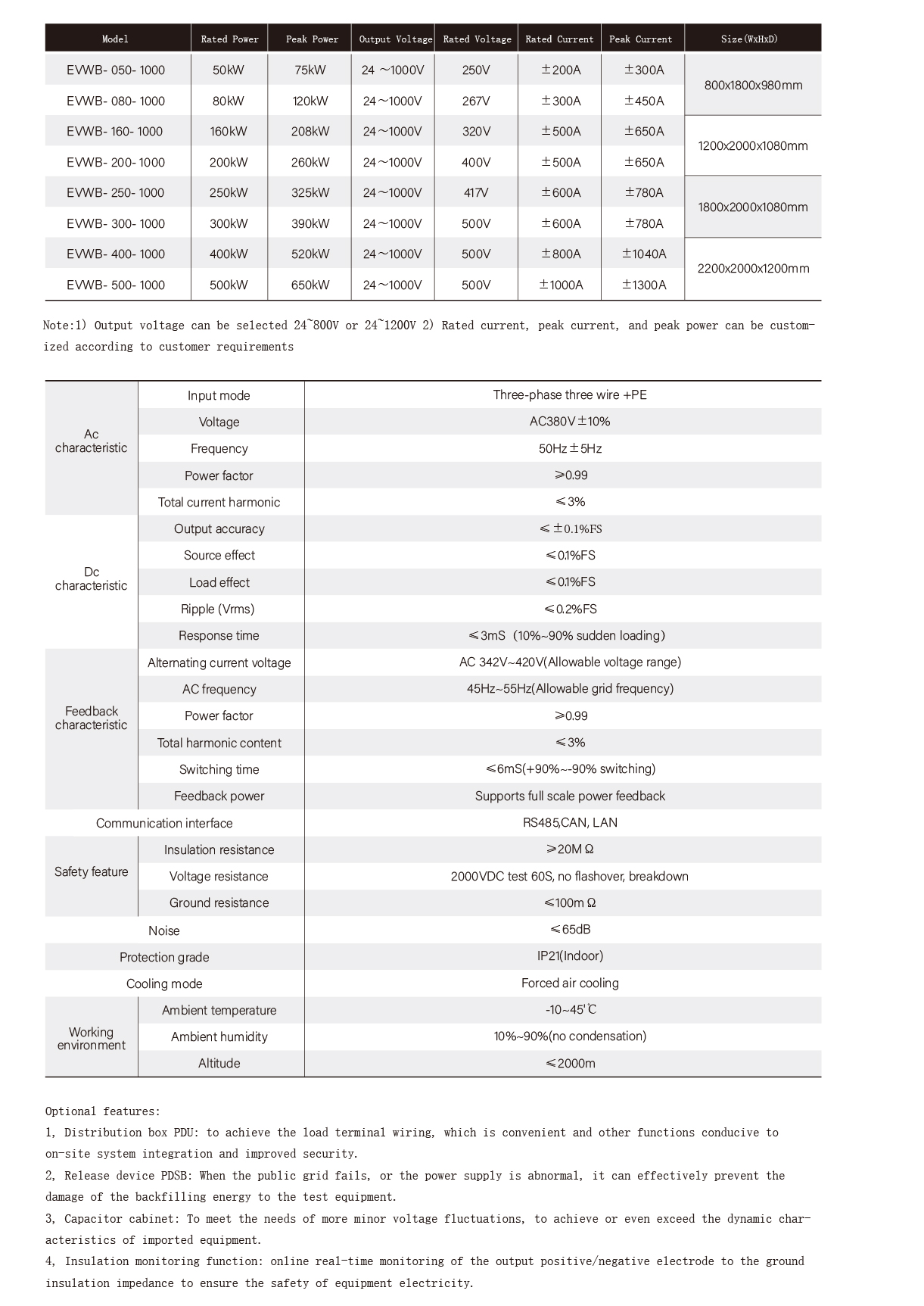

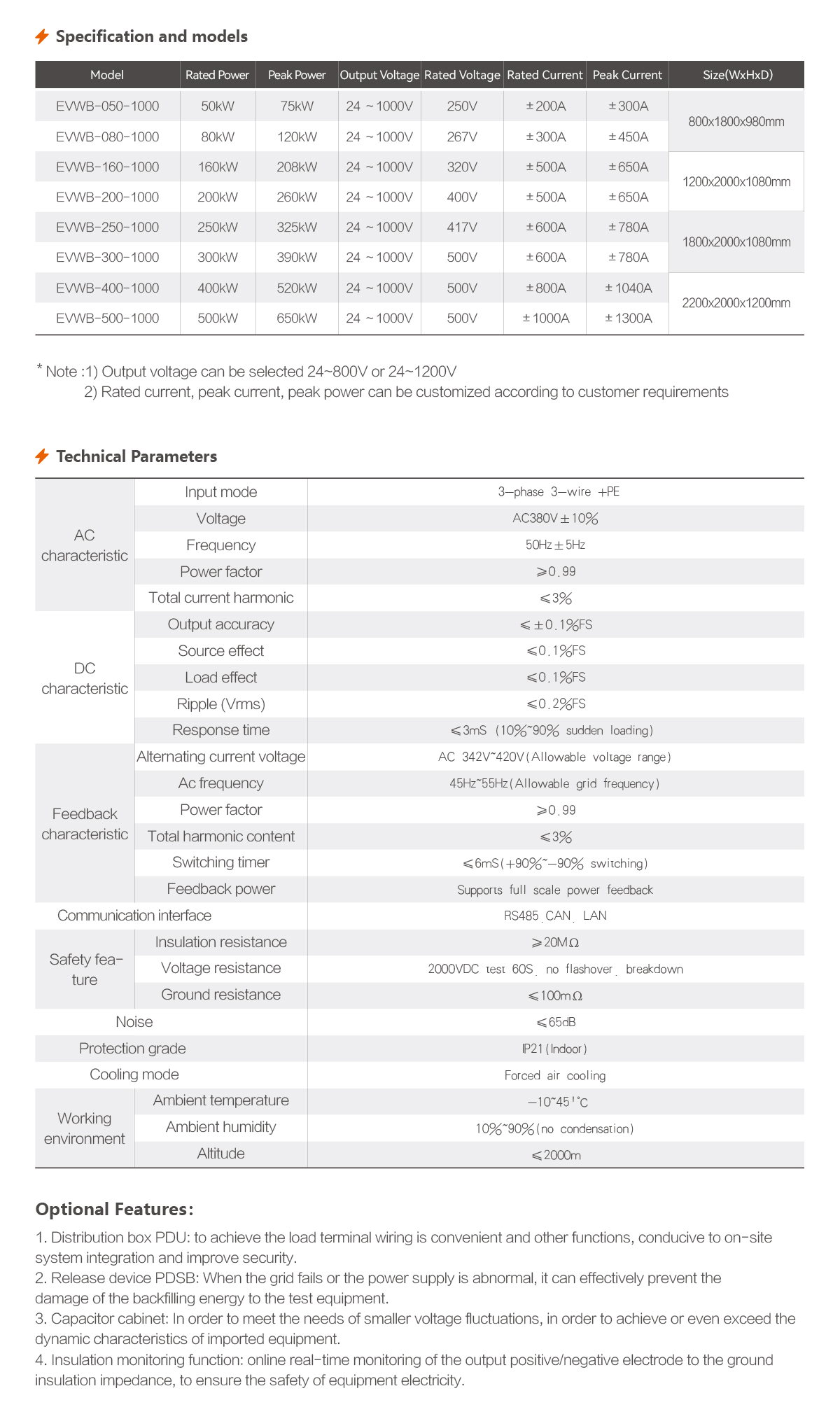

Technical parameter table
Bi-directional DC Test Power Supply
