Programmable DC Test Power Supply

MP Series

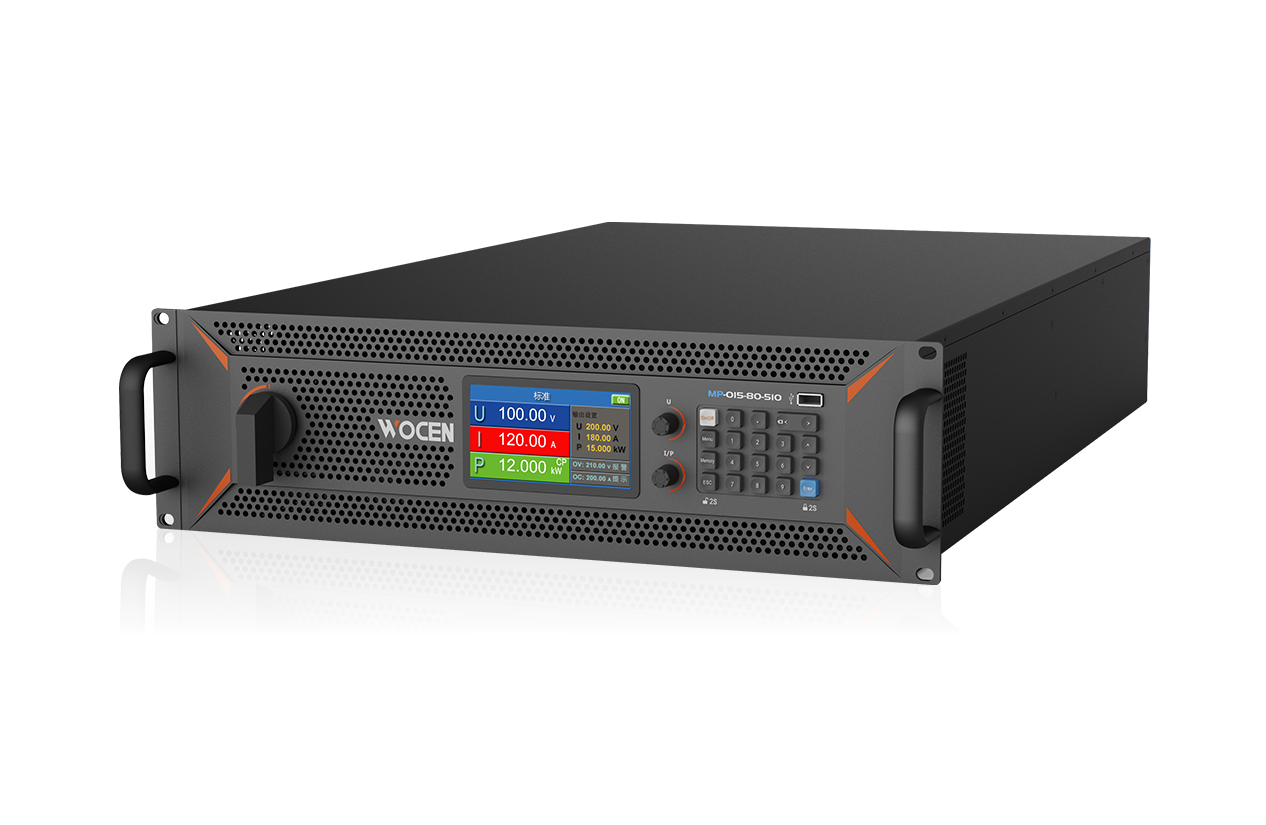

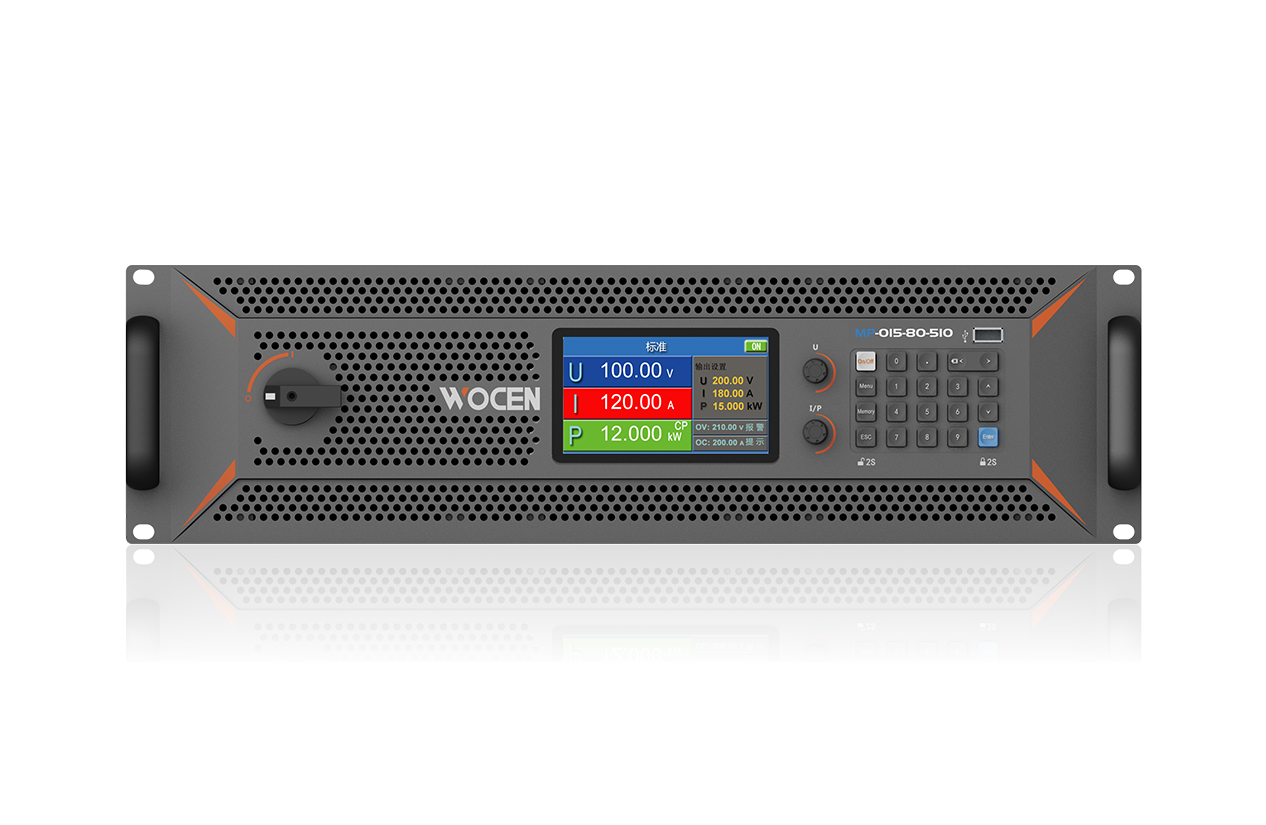

The MP series programmable DC power supply has the characteristics of fast dynamic response, high output accuracy and low output ripple, and adopts the international standard 3U chassis to provide power output capacity of up to 15KWV. The power supply has a wide output range of automatic range, providing high voltage, low current or low voltage, high current flexible output capability. Support powerful arbitrary waveform generators to provide more comprehensive power supply testing capabilities.

Return to List

Application Area

Electric vehicle electronic control testing
Battery Test
Power Test
Precision Plating/Sputtering
Automated Test Systems (ATE) DC Switch Test
Energy Storage System

Product Features

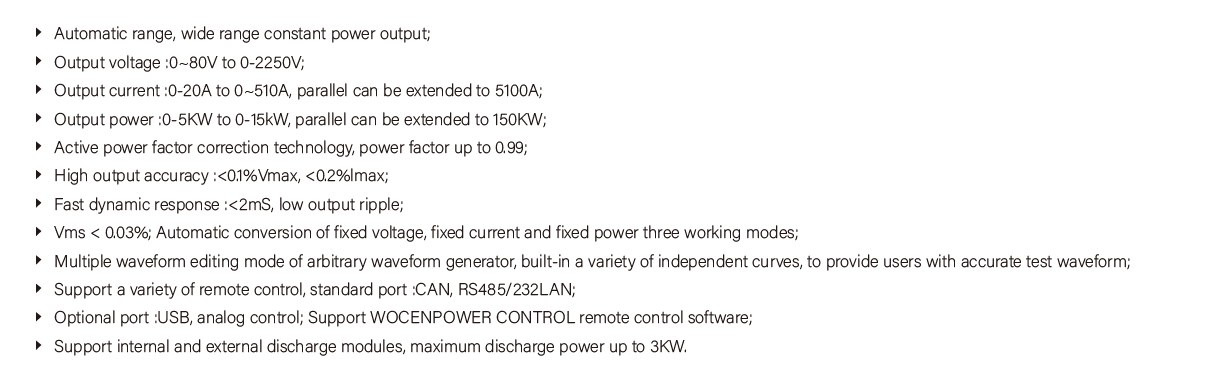

Automatic range, wide range constant power output;
Output voltage: 0~80V~0~2250V;
Output current: 0~20A to 0~510A, parallel connection can be extended to 5100A;
Output power: 0~5kW to 0~15kW, extended to 150kW in parallel;
Adopt active power factor correction technology; the power factor is as high as 0.99;
High output accuracy:<0.1% Vmax,<0.2% Imax;
Fast dynamic response:<1.5mS, low output ripple:<0.03% Vrms; Automatic conversion of three working modes:
constant voltage, constant current, and constant power;
Arbitrary waveform generator with multiple waveform edit modes, built- in multiple independent curves, providing users with accurate test waveforms;

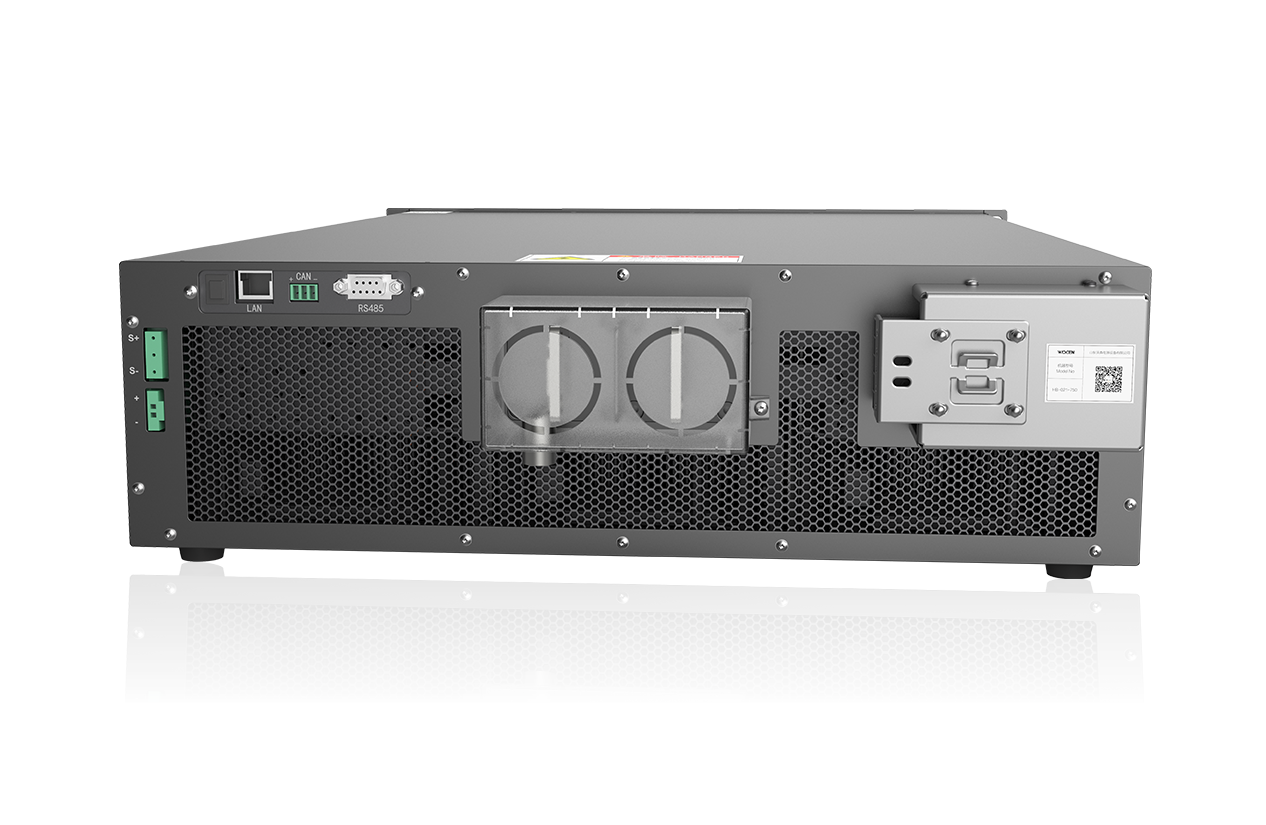

Support multiple remote control, standard port: CAN, RS485/ 232, LAN; optional port: USB, analog control;
Supporting WOCEN POWER CONTROL remote control software;
Support the internal (external) discharge module with a maximum discharge power of up to 5kW.

Product Functions

Wide range output capability with automatic range

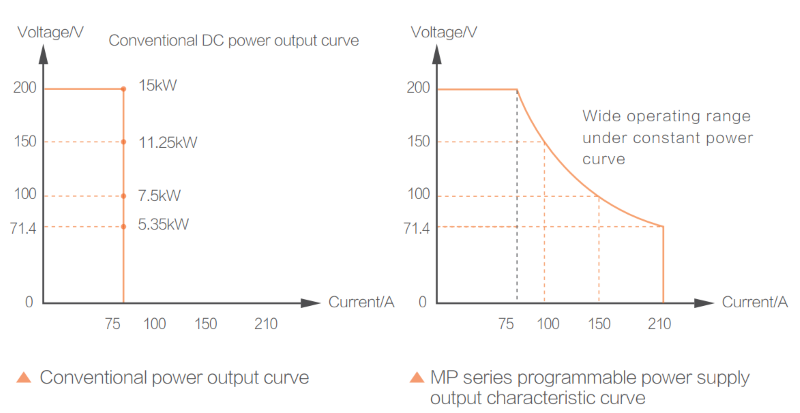

Compared to traditional fixedrange DC power supplies, the MP series can output full power across a wide range of voltage and current combinations within its power range. A single MP power supply covers the output range of three traditional power supplies. For example, the 200V /210A / 15kW model of the MP series power supply can provide an output of 200V 75A or 71.4V 210A and can offer a full power output of 15kW at any voltage point between 71.4V and 200V, significantly improving the output power supply capability of the product and significantly reducing the complexity and space occupied by the system setup.

Powerful Arbitrary Waveform Generator

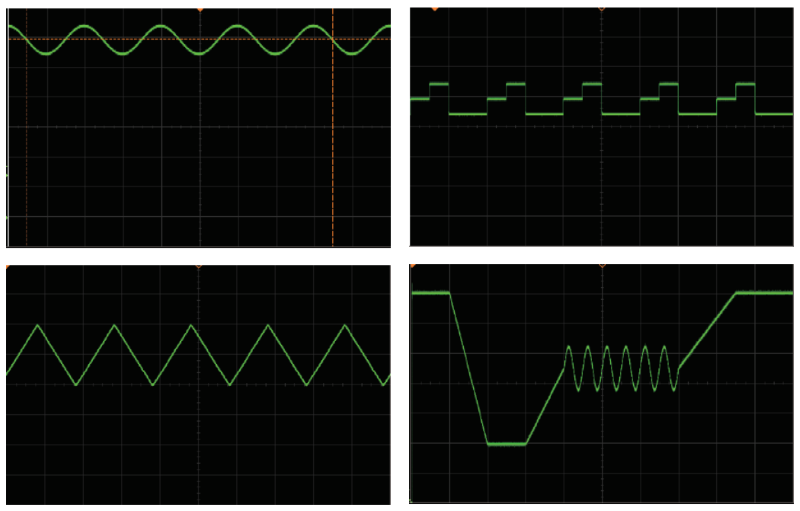

The MP series built- in multiple waveform generators allow users to easily realize the single or combined output of triangular / rectangular / trapezoidal / sine / step waveforms and apply these waveforms to an output voltage or output current. They provide users with powerful programmable test capability.

Fast Dynamic Response

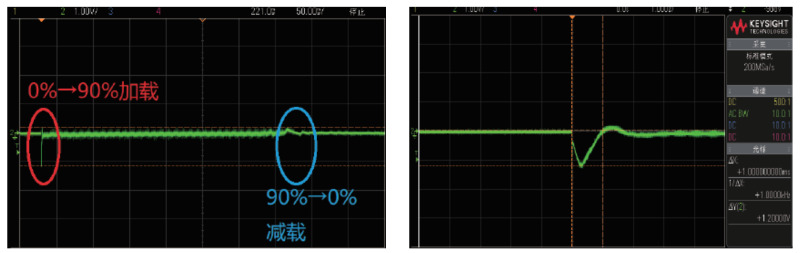

With advanced multi- loop composite control technology, HB series provides fast dynamic response capability, instantaneous load voltage drop <1%, almost no voltage process during unloading, and dynamic response time <2mS.

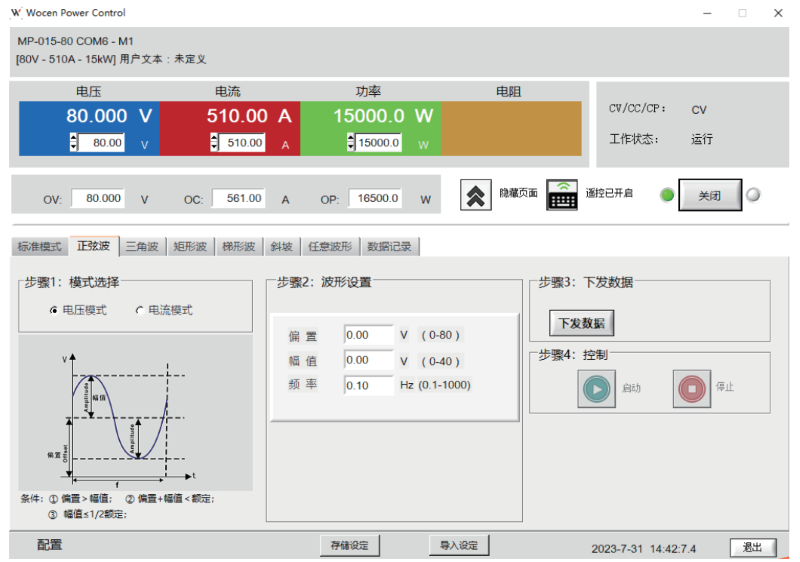

WOCEN POWER CONTROL upper computer monitoring software

1. WOCEN POWER CONTROL is a newly developed Windows monitoring software platform;
2. Automatic equipment scanning, supports simultaneous monitoring of multiple different lower computers, multithreaded control, and no mutual influence;
3. Supports output parameter display/setting, start/stop control, protection parameter configuration, status indication function generator, and provides 100- step arbitrary waveform editing capabilities;
4. Data storage, providing storage of user configuration, function generator editing data, and real- time output data;
5. Storage and call function, supports user- defined storage path, storage time interval, etc.
6. Supports RS232, RS485, USB, LAN network port control;
7. Supports MP (V1.2), HB, GP-1.5/3kW series products (continuously updated).

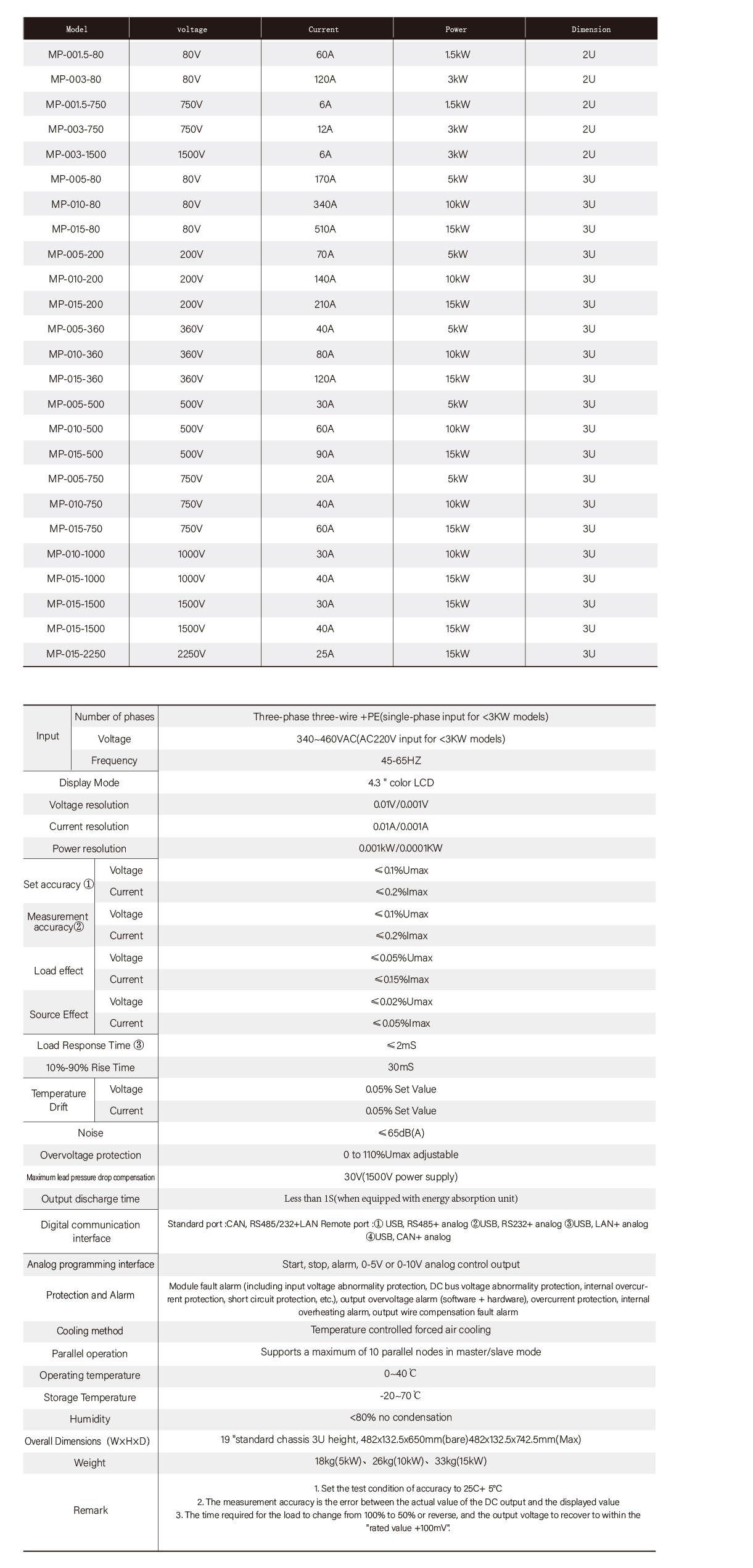

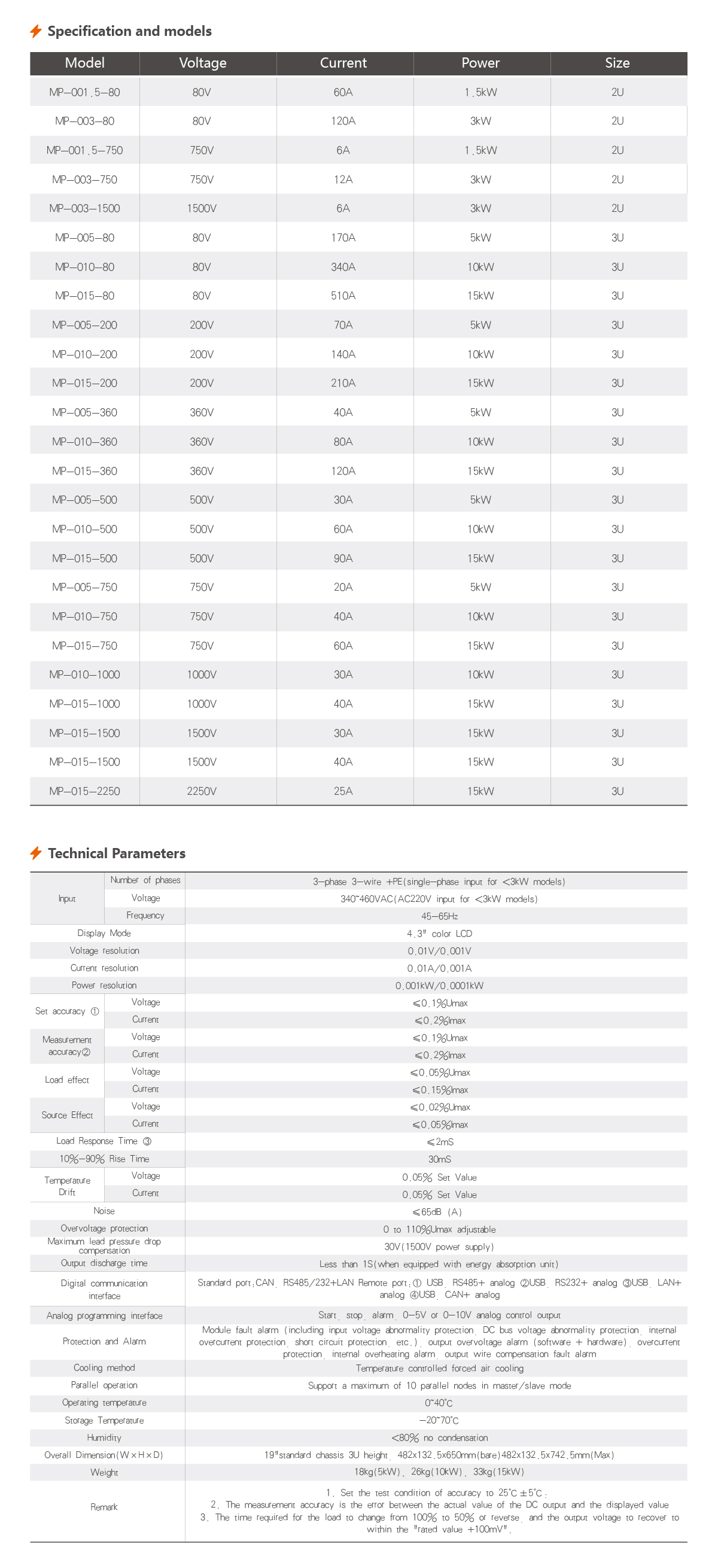

Technical parameter table
